VM120 SERIES DIAMOND MESH ALUMINUM CLAD WOOD INTEGRATED WINDOW

The external aluminum adopts the patented technology design of the batch type drainage system, which is a powerful, which is a powerful guarantee for the waterproof performance of the door and the windows.
Color:
Size:
  • LUCK GLASS
Product Description

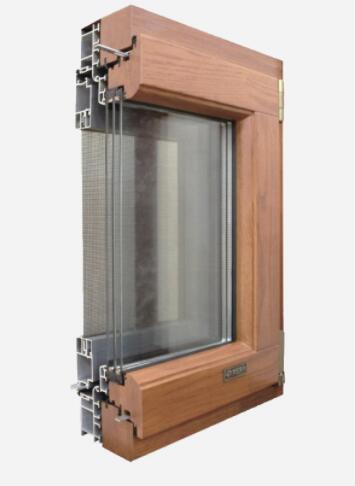

QQ截图20210222112007

VM 120 SERIES DIAMOND MESH ALUMINUM CLAD WOOD INTEGRATED WINDOW


●With the window frame ;perfect fusion, becomes:an organicwhole, durable, beautiful coordination.


Strong ability to resistimpact, high strength, good toughness, to ensure family sa.fety.


The product is transparent without vertigo, for customers to create a safe and comfortable private space.


The net surface istreatedby electrostaticspraying,strong weather resistance.lnsect;proof,anti-theft, beautiful,convenient.

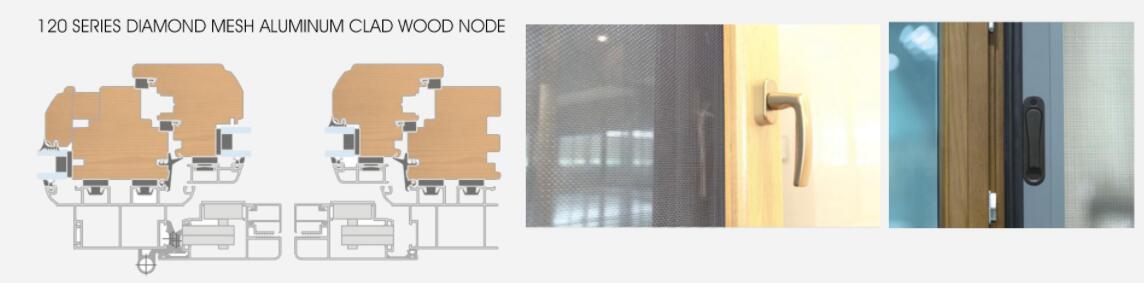

QQ截图20210222112504

PRODUCT CONFIGURATION
GLASS      5c (G single silver lore + 12a+5c (G +12 a+5c (G)
Open A Mode  There are opening ways of fixing. level, down-suspending, level up-suspending, sliding up-suspending, etc.
Gauze Window Concealed organ window screen electric shutter
Species Of Wood Larch/White 0ak/Red Oak/Siberian Pine
Aluminium Product

Aluminum wall thickness>=1.4mm

PRODUCT PERFORMANCE
Insulation Performance Level 8 [heat transfer coefficient K:1.3wl (m2^k)
Soun Insulation    Level 4 [R(c;c)=37(0;-2)dB]
Water -Tightness  Level 6 [△P>=700Pa (reached the highest level of national standard)]
Airtight Performance  Level 8[q1<=0.5 m^3 /(m.h) has reached the national standard (top)]
Wind Load Resistance Level 9[p3>=5000pa (reached the highest level of national standard)]

QQ截图20210222114329
